CONTROL STRUCTURE : REPETITION

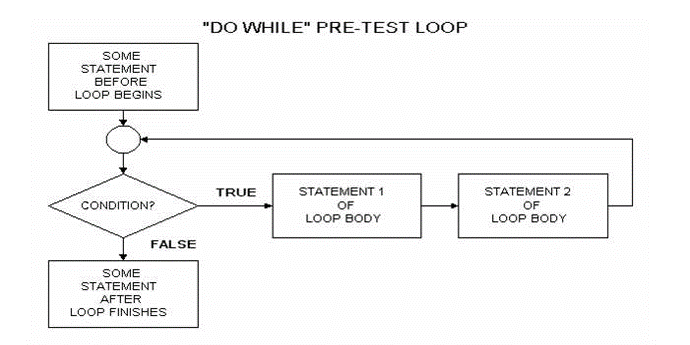

FLOWCHART

•

•

HANG MAN GAME

Let’s play a game!

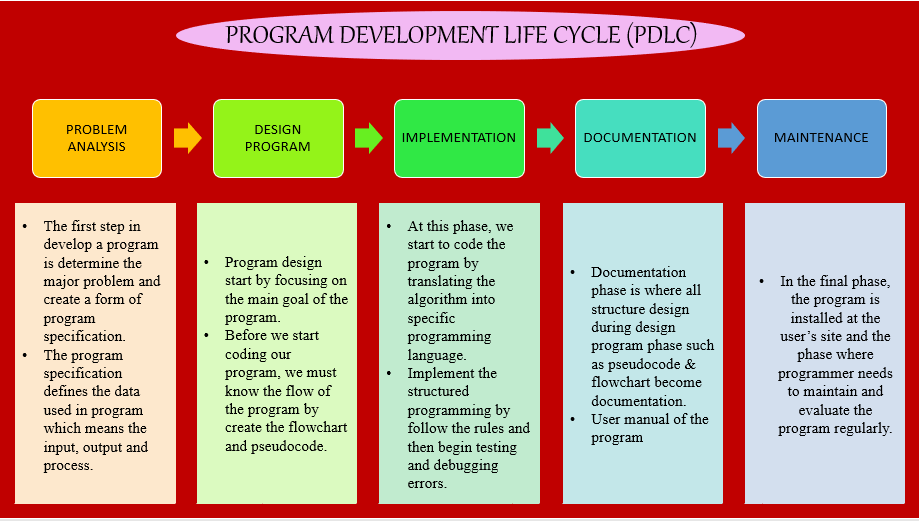

But before that, let’s learn how to develop the game. We start with implement the Program Development Life Cycle.

PROBLEM ANALYSIS

The first step in develop a program is determine the major problem and create a form of program specification. The program specification defines the data that used in the program which means the input, output and process.

PROGRAM DESIGN

Program design start by focusing on the main goal of the program. Before we start coding our program, we must know the flow of the program by create the flowchart and pseudocode.

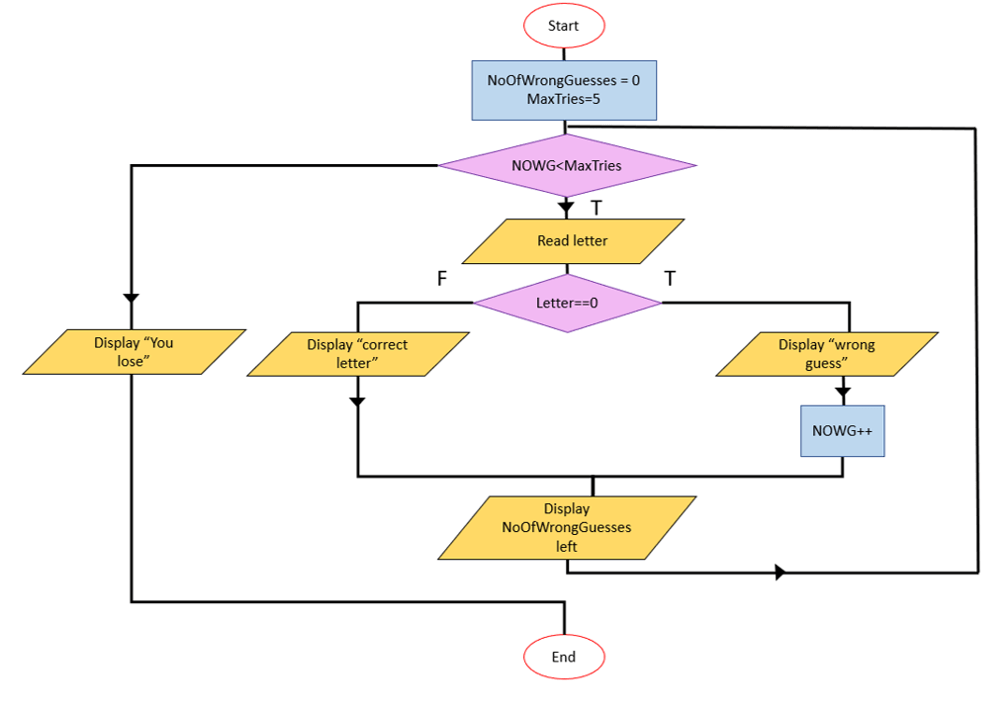

FLOWCHART

PSEUDOCODE

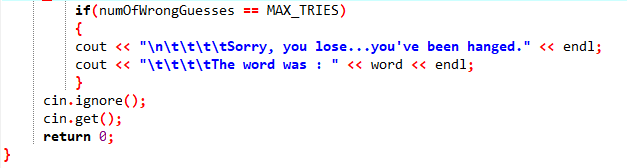

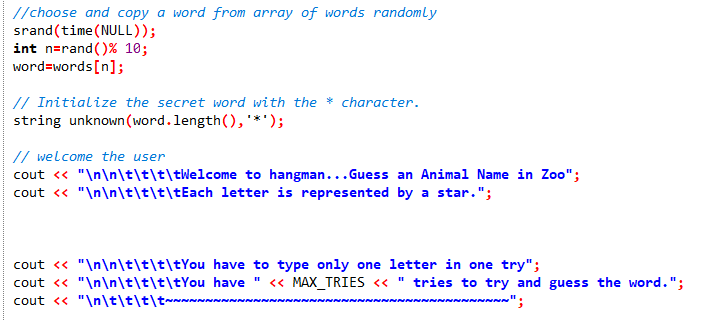

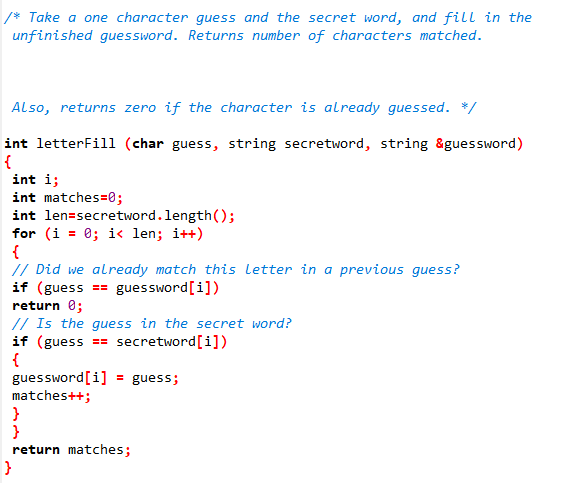

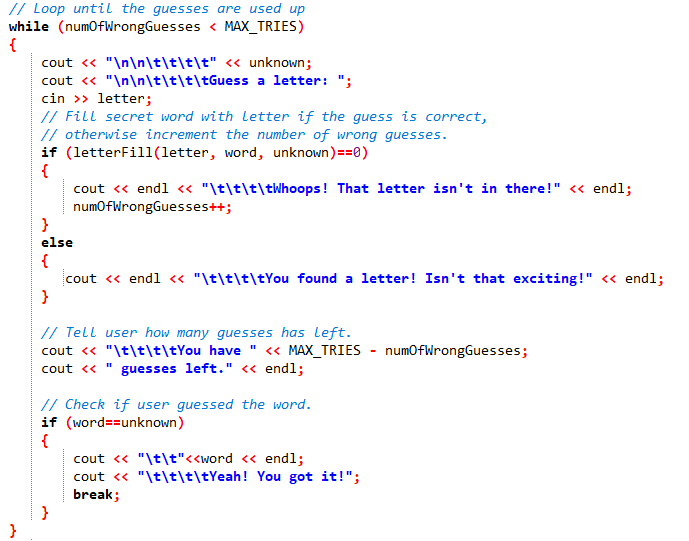

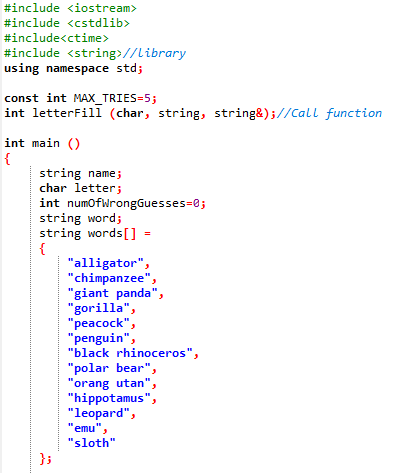

IMPLEMENTATION

At this phase, we start to code the program by translating the algorithm into specific programming language. Implement the structured programming by follow the rules and then begin testing and debugging errors.

•

•

•

•

•

DOCUMENTATION

Documentation phase is where all structure design during design program phase such as pseudocode & flowchart become documentation. User manual of the program also part of documentation.

MAINTENANCE

In the final phase, the program is installed at the user’s site and the phase where programmer needs to maintain and evaluate the program regularly.
